2.5 SCSI Bus Connection Options

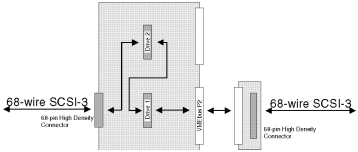

Figure 2-2 SCSI-3 Daisy-Chain Option
This setup connects the BI0316 to a 16-bit (WIDE) Single-Ended or Differential SCSI bus. Note that if either the cable at the front or at the rear connector is not inserted, termination must be applied to this connector. The following table contains a list of products to achieve this termination.
When the cable at the front has to connect to an 8-bit device, special care has to be given to the Upper Byte termination. See "Mixing Buses Having Different Widths".
